SK4316A(W), SK4330A(W), SK4336A(W) and SK4338AW
► Supports two modes of tapping: deep positioning automatic tapping and manual tapping. ► Able to freely set the tapping speed, withdrawal speed, tapping depth, pitch and number of withdrawal turns. ► Supports dual-speed gearbox (SK4348AW), slow gear can tap large-size threads, and fast gear taps small threads ► Support vibration tapping mode, effectively improve tapping ability and effect, and the effect is better when tapping deep holes. ► With real-time torque detection and torque protection capabilities, reduce the possibility of wire breakage. ► With multiple intelligent protection functions such as overvoltage, overcurrent, overtorque protection and speed limit tapping. ► The tapping pitch can be set arbitrarily to meet the processing needs of British and other non-standard threads, and has a wide range of applications.

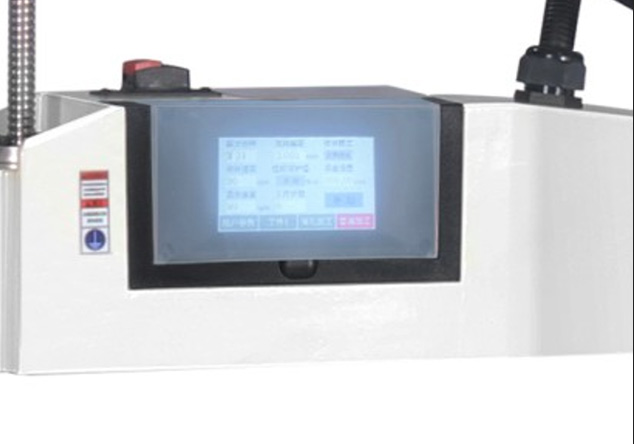

Touch Screen Servo Control System： SK series folding armservo electric tapping machine products use new automation technology and adopt touch screen servo control system.

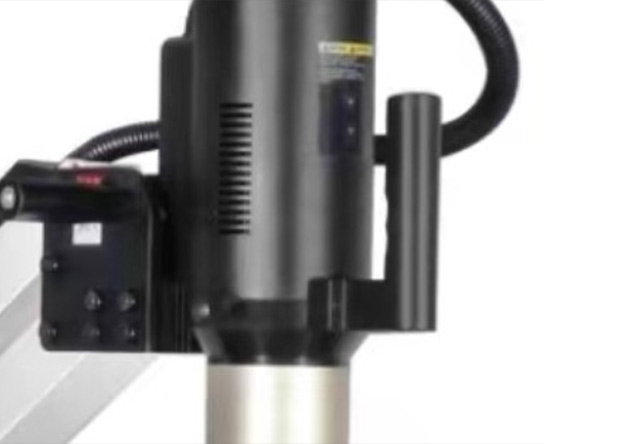

220V High-performance AC Synchronous Servo Motor: equipped with 220V high-performance AC synchronous servo motor as power, it has large output torque, strong tapping ability, the chuck has an overload protection device, the tap damage is small, and the thread precision is high.

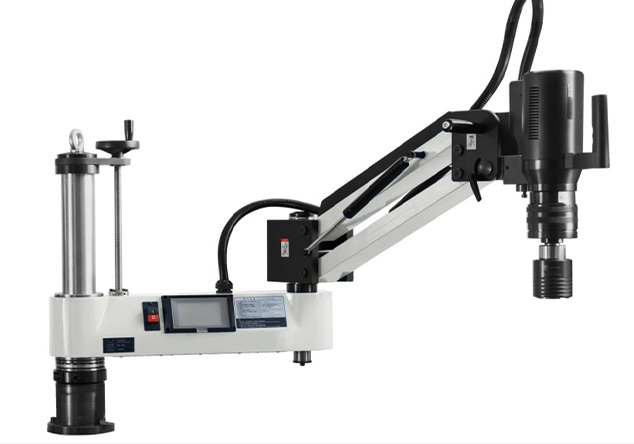

Folding Arm Structure： adopts folding arm structure, equipped with universal tapping head. The tapping head can be adjusted to any angle, workpiece vertical, horizontal, inclined and otherangles can be tapped. Easy and simple operation. Suitable for tapping various mat- erials such as steel, cast iron, copper, aluminum, plastic, etc., widely used in mechanical manufacturing and processing industry, including tapping processing of molds, machine tools and large workpieces that are difficult to position and move.
